※ Used when the HI-TEC TRAY bends at a 90-degree horizontal angle.
※ For bends at 60°, 45°, or 30°, custom fabrication is available based on specifications.
Horizontal Elbow Covers
Unit: mm
Horizontal Tee
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm
※ Used for T-shaped branching of the HI-TEC TRAY.
※ Custom fabrication is available for branches of different widths.

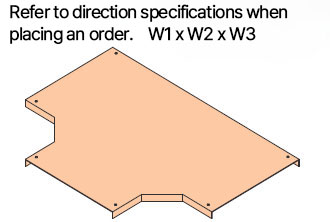

Horizontal Tee Covers
Unit: mm
Vertical Elbow 90° (In Side)
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm
※ Used when the HI-TEC TRAY bends vertically at a 90-degree angle - either upwards or downwards.
※ For vertical bends at 60°, 45°, or 30°, custom fabrication is available based on specifications.
Vertical Elbow Covers (In side)
Unit: mm
Vertical Elbow 90° (Out side)
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm
※ Used when the HI-TEC TRAY bends vertically at a 90-degree angle - either upwards or downwards.
※ For vertical bends at 60°, 45°, or 30°, custom fabrication is available based on specifications.
Vertical Elbow Covers (Out side)
Unit: mm
Horizontal Cross
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm
※ Used where the HI-TEC TRAY forms a cross (+) intersection, and can be custom-manufactured to accommodate different tray widths.

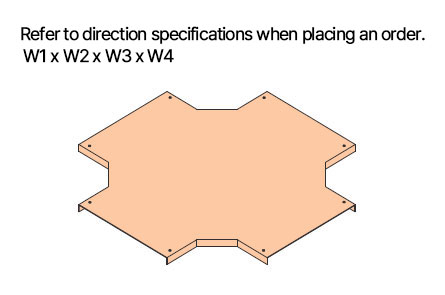

Horizontal Cross Covers
Unit: mm
Loking Device
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing

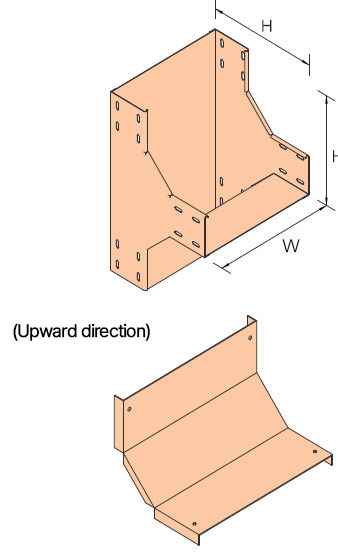

Vertical Tee & Cover (UP Type)
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm
※ Used for T-shaped branching of the HI-TEC TRAY in the upward direction.
Vertical Tee & Cover (Down Type)
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm
※ Used for T-shaped branching of the HI-TEC TRAY in the downward direction.
Reducer
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm
※ Used when the HI-TEC TRAY bends at a 90-degree horizontal angle, with custom fabrication available for 65°, 45°, or 30° bends according to specifications.
Reducer Covers
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm

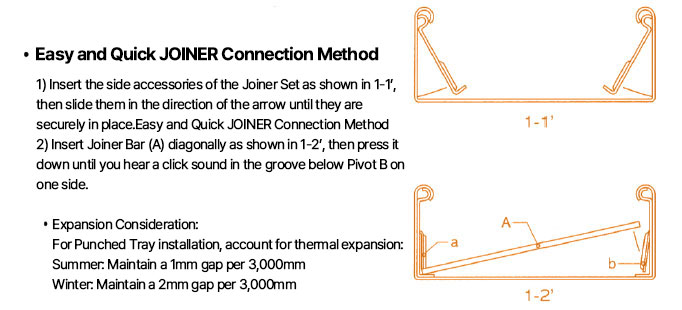

Joiner Set System
Joiner Set
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Box Connector
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
※ Used when the HI-TEC TRAY transitions to a wider or narrower width, with the Reducer Connector allowing for simple adjustment.
End Cap
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet
Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Riser Connector
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet, Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm
A connector that allows flexible vertical adjustments of the HI-TEC TRAY, with the ability to be adjusted at various angles for versatile installation.
Straight Connecor
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet, Electrostatic Powder Coating
Unit: mm
Separator
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet, Electrostatic Powder Coating
Unit: mm
Bonding Jumper
Shank Bolt, Nut
Materials: Steel(E.G) or Stainless Steel (STS304)
End Plate
Material & Surface Treatment
KS D 3506 Galvanized Steel Sheet, Electrostatic Powder Coating
KS D 8308 Hot-Dip Galvanizing
Unit: mm
Bearing Angle
Material & Surface Treatment
KS D 3512 Cold-Rolled Steel Sheet, Electro-Galvanized Coating
KS D 3512 Cold-Rolled Steel Sheet, Electrostatic Powder Coating
Unit: mm
※ Includes Flat-Head Bolt (M6 × 12), 2 sets (applies to lengths of 370mm or more).
